Sahm-Splice and Unisplice Hydraulic Swagers

25T

This Gap Frame Swaging Machine is capable of swaging:

• Aluminum ferrules (EN 13411-3) 6.5 - 9 mm in two bites

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity .....................250 KN
Max. piston stroke ............................19 mm
Max. oil pressure .............................400 bar
Loaded stroke speed ...................... 5 mm/s
Swaging die
take up - Max ........................... 42 x 38 mm
Power supply ....................... 380 V or 220 V
                                                         50 Hz
                                                     0.75 KW
Press Head Dimensions ................ 320 x 145
(L x W x H) ................................. x 145 mm
Power Pack Dimensions ................ 510 x 255
(L x W x H) ................................. x 400 mm
Weight ..............................................48 KG
Oil capacity ......................................... 10 L
Oil .............................................ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard

25T - Gap Frame Splicing Machine

Model H6, 5/9 - HG

This hand pumped swager is generally arranged as indicated, with the "Gap Frame" casting mounted on a fabricated steel base. The hand operated hydraulic pump is an aluminum lightweight design conveniently mounted on the front facing of the head casting. The pump features replaceable cartridge valves on both the suction and delivery sides.

The ‘Gap Frame’ press head permits frontal as well as side accesses allowing optimum access to the work area.

The swaging and return cycle is controlled via a shut-off valve situated on the right hand side of the pump unit and permits control over the ram stroke in either direction. Return of the ram is via a powerful spring, which is both quick and effective. The press accepts conventional 25t section die blocks (38 mm x 42 mm) and will accommodate up to 9 mm fc rope in Aluminum ferrules.

The main operational feature of the swaging machine, apart from optimum access, is its portability and robust design.

Technical Data:
Type of Press............Hand Pumped Hydraulic
Maximum Closing Force .... 250 kN (25 tonne)
Capacity ................................. 6.5 One-bite
up to 9 Two-bite
Working Height ...............................900 mm
Overall Height .................................315 mm
Overall Width .................................156 mm
Overall Depth .................................280 mm
Effective Ram Diameter .....................95 mm
Maximum Ram Stroke .......................20 mm
Maximum Operating Pressure ...........400 bar
Reservoir Capacity ........................... 230 cc
Recommended Hydraulic Oil .........ISO VG 32
Net Weight of Press (excluding dies) ....30 kg

30T - Down Stroke

This swaging machine with its 315 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) up to 7 mm

Handling is extremely easy as the work piece remains stationary while swaged from above.

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001. Our assembly is certified to EN ISO 9001:2000 standard.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity.....................315 KN
Max. piston stroke............................25 mm
Max. oil pressure.............................400 bar
Stroke speed.................................. 5 mm/s
Reversing speed............................. 9 mm/s
Measurements of
swaging dies (W x H)................ 50 x 48 mm
Operating height.............................262 mm
Power supply.................................. 1.1 KW
                                                        50 Hz
                                                         400V
Stroke limiter.................................included
Automatic control...........................included
Foot switch....................................included
Dimensions (L x W x H) 525 x 370 x 558 mm
Weight............................................158 KG
Oil capacity ......................................... 5 L
Oil ............................................ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

60T

This Gap Frame Swaging Machine is capable of swaging:

• Aluminum ferrules (EN 13411-3) 10 - 14 mm in two bites
• Flemish Eye up to 3/8"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity ....................600 KN
Max. piston stroke ...........................25 mm
Max. oil pressure ............................360 bar
Unloaded stroke speed ................ 4.5 mm/s
Loaded stroke speed ................... 1.2 mm/s
Reversing speed ......................... 7.5 mm/s
Swaging die take up - Max ....... 50 x 48 mm
Operating height ..........................1350 mm
Power supply ...................... 380 V or 220 V
                                                        50 Hz
                                                      2.2 KW
Dimensions
(LxWxH) ................. 1050 x 1020 x 1960 mm
Weight ............................................451 KG
Oil capacity ......................................... 50 L
Oil .............................................ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

90T - Down Stroke

This swaging machine with its 900 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) up to 12 mm
• Flemish Eye sleeves from 1/4" to 1/2"

Handling is extremely easy as the work piece remains stationary while swaged from above.

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001. Our assembly is certified to EN ISO 9001:2000 standard.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity......................900 KN
Max. piston stroke.............................40 mm
Max. oil pressure.............................448 bar
Stroke speed................................ 10 mm/s
Loaded stroke speed.................... 3.5 mm/s
Reversing speed........................ 22.5 mm/s
Measurements of
swaging dies (W x H)............... 80 x 78 mm
with angle-packing .................. 50 x 48 mm
Operating height ............... 880 – 1180 mm
Power supply .................................... 4 KW
                                                        50 Hz
                                                         400V
Stroke limit ......... smooth, electronic control
Automatic control ..........................included
Foot switch ...................................included
Dimensions
(L x W x H).... 1170 x 812 x 1360 - 1660 mm
Weight ...........................................570 KG
Oil capacity ........................................ 40 L
Oil .............................................ISO VG 46

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

150T

This swaging machine with its 1500 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) sizes 18 - 22 mm in two bites.
• Flemish Eye sleeves from 1/2" to 3/4"
• Swage sockets - Full shank 3/8"
• Swage sockets - Progressive 1/2"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity ..................1500 KN
Max. piston stroke...........................39 mm
Max. oil pressure ...........................335 bar
Unloaded stroke speed ................ 10 mm/s
Loaded stroke speed .................. 1.5 mm/s
Reversing speed ......................... 16 mm/s
Swaging die take up - Max...... 100 x 78 mm
or to customers requirements
Operating height .........................1000 mm
Power supply ................................... 3 KW
                                                       50 Hz
                                                        400V
Dimensions
(LxWxH) mm .................. 640 x 710 x 1690
Weight ..........................................620 KG
Oil capacity ....................................... 65 L
Oil ............................................ISO VG 46

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

350T

This machine is capable of swaging the following sizes:

• Aluminum ferrules (EN 13411-3) 26 - 30 mm in two bites
• Flemish Eye up to 1 1/8"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity ..................3500 KN
Max. piston stroke ...........................55 mm
Max. oil pressure ............................335 bar
Unloaded stroke speed ................. 10 mm/s
Loaded stroke speed ................... 1.3 mm/s
Reversing speed .......................... 13 mm/s
Swaging die take up - Max .....110 x 156 mm
with angle-packing ................. 78 x 100 mm
Operating height ..........................1255 mm
Power supply ....................................380 V
                                                        50 Hz
                                                      5.5 KW
Dimensions
(LxWxH) mm ................ 1050 x 1020 x 1960
Weight .........................................1628 KG
Oil capacity ........................................ 60 L
Oil ............................................ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

300T - One Column

This swaging machine with its 3000 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) sizes 24 - 28 mm in two bites.
• Flemish Eye sleeves from 1/4" to 1"
• Swage sockets - Full shank 5/8"
• Swage sockets - Progressive 3/4"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001. Our assembly is certified to EN ISO 9001:2000 standard.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity...................3000 KN
Max. piston stroke...........................54 mm
Max. oil pressure............................416 bar
Unloaded stroke speed................. 10 mm/s
Loaded stroke speed................... 3.4 mm/s
Reversing speed.......................... 22 mm/s
Measurements of
swaging dies (W x H)............. 100 x 78 mm
with angle-packing................... 80 x 78 mm
Operating height..........................1113 mm
Power supply.................................. 11 KW
                                                       50 Hz
                                                        400V
Stroke limit......... smooth, electronic control
Automatic control..........................included
Foot switch...................................included
Dimensions
(L x W x H)............. 1625 x 640 x 1521 mm
Weight.........................................1540 KG
Oil capacity...................................... 130 L
Oil............................................ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

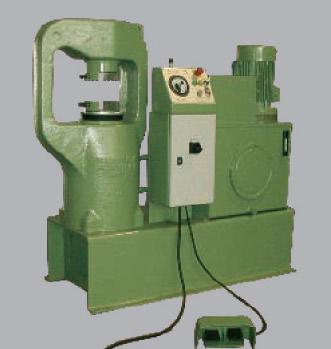

300T - Two Column

This swaging machine with its 3000 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) 24 to 28 mm in two bites.
• Flemish Eye sleeves from 1/4" to 1"
• Swage sockets - Full shank 5/8"
• Swage sockets - Progressive 3/4"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity...................3000 KN
Max. piston stroke............................54 mm
Max. oil pressure.............................416 bar
Unloaded stroke speed.................. 10 mm/s
Loaded stroke speed.................... 3.4 mm/s
Reversing speed........................... 22 mm/s
Measurements of
swaging dies (W x H).............. 100 x 78 mm
with angle-packing................... 80 x 78 mm
Operating height...........................1113 mm
Power supply................................... 11 KW
                                                        50 Hz
                                                        400 V
Dimensions
(L x W x H) mm.............. 1625 x 640 x 1521
Weight..........................................1540 KG
Oil capacity...................................... 130 L
Oil.............................................ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

600T - One Column

This swaging machine with its 6000 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) size 36 - 40 mm in two bites.
• Flemish Eye sleeves from 1/4” to 1/2”
• Swage sockets - Full shank 1”
• Swage sockets - Progressive 1 1/4”

Quality:
This machine is produced in accordance with the CE machinery directive & EN 693:2001. Our assembly is certified to EN ISO 9001:2000 standard.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity...................6000 KN
Max. piston stroke...........................85 mm
Max. oil pressure............................425 bar
Unloaded stroke speed................. 10 mm/s
Loaded stroke speed................... 2.7 mm/s
Reversing speed.......................... 18 mm/s
Measurements of
swaging dies (W x H)............ 156 x 110 mm
with angle-packing................. 100 x 78 mm
Operating height.......................... 1127 mm
Power supply................................ 18.5 KW
                                                       50 Hz
                                                        400V
Stroke limit......... smooth, electronic control
Automatic control..........................included
Foot switch...................................included
Dimension
(L x W x H)............. 2190 x 865 x 1992 mm
Weight.........................................4310 KG
Oil capacity..................................... 250 L
Oil............................................ISO VG 46

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

600T - Two Column

This swaging machine with its 6000 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) 36 - 40 mm in two bites.
• Flemish Eye from 1/4” to 1/2”
• Swage sockets - Full shank 1”
• Swage sockets - Progressive 1 1/4”

Quality:
This machine is produced in accordance with the CE machinery directive & EN 693:2001. Our assembly is certified to EN ISO 9001:2000 standard.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity....................6000 KN
Max. piston stroke............................85 mm
Max. oil pressure.............................425 bar
Unloaded stroke speed.................. 10 mm/s
Loaded stroke speed.................... 2.7 mm/s
Reversing speed........................... 18 mm/s
Measurements of
swaging dies (W x H)............. 156 x 110 mm
with angle-packing.................. 100 x 78 mm
Operating height........................... 1127 mm
Power supply................................. 18.5 KW
                                                         50 Hz
                                                         400V
Stroke limit ......... smooth, electronic control
Automatic control...........................included
Foot switch....................................included
Dimensions
(L x W x H).............. 1844 x 876 x 1667 mm
Weight..........................................3230 KG
Oil capacity...................................... 250 L
Oil.............................................ISO VG 46

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

1000T - Two Column

This machine is capable of swaging the following sizes:

• Aluminum Ferrules (EN 13411-3) sizes 50-54 mm in two bites
• Flemish Eyes up to 2 1/2"
• Swage Sockets - Full Shank 1"
• Swage sockets - Progressive 1 1/2"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity .................10000 KN
Max. piston stroke ............................95 mm
Max. oil pressure ............................330 bar
Unloaded stroke speed .................. 10 mm/s
Loaded stroke speed .................... 1.8 mm/s
Reversing speed ........................... 12 mm/s
Swaging die take up - Max ......150 x 220 mm
with angle-packing .................. 78 x 100 mm
Operating height .......................... 1170 mm
Power supply .....................................380 V
                                                         50 Hz
                                                        15 KW
Dimensions
(LxWxH) mm..................1960 x 1415 x 2350
Weight ......................................... 6000 KG
Oil capacity ........................................200 L
Oil ............................................ ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

1250T- Two Column

This swaging machine with its 12500 KN pressing capacity is capable of pressing:

• Aluminum ferrules (EN 13411-3) size 54 - 56 mm in two bites.
• Flemish Eye sleeves from 1/2" to 3"
• Swage sockets - Full shank 1 1/8"
• Swage sockets - Progressive 2"

Quality:
This machine is produced in accordance with the CE machinery directive & EN 693:2001. Our assembly is certified to EN ISO 9001:2000 standard.

Warranty:
12 months defective parts warranty.

Technical Data:
Max. pressure capacity ................12500 KN
Max. piston stroke .........................100 mm
Max. oil pressure ...........................370 bar
Unloaded stroke speed .................. 6 mm/s
Loaded stroke speed ................ 1.65 mm/s
Reversing speed ........................ 9.7 mm/s
Measurements of
swaging dies (W x H) .......... 250 x 200 mm
with angle-packing .............. 220 x 150 mm
with angle-packing .............. 156 x 110 mm
Operating height .........................1236 mm
Power supply ................................. 22 KW
                                                       50 Hz
                                                        400V
Stroke limit......... smooth, electronic control
Automatic control .........................included
Foot switch ..................................included
Dimensions
(L x W x H) mm............. 2120 x 925 x 1980
Weight ........................................7532 KG
Oil capacity ..................................... 250 L
Oil ...........................................ISO VG 46

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

1500T - Two Column

This machine is capable of swaging the following sizes:

• Aluminum Ferrules (EN 13411-3) sizes 54-76 mm
• Flemish Eye 1/4"- 3 1/2"
• Swage Sockets - Full Shank 1 1/4"
• Swage sockets - Progressive 2"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max pressure capacity ..................15000 KN
Working stroke ................................90 mm
Max oil pressure .............................345 bar
Unloaded stroke speed ................. 10 mm/s
Loaded stroke speed ................... 1.7 mm/s
Return speed ............................... 12 mm/s
Swaging die take-up, Max ..... 300 x 250 mm
with Angle Packing ............... 220 x 150 mm
Operating height ..........................1085 mm
Power supply ....................................380 V
                                                        50 Hz
                                                       15 KW
Dimensions
(LxWxH) mm.................2100 x 1200 X 2375
Weight .........................................8500 KG
Oil capacity .......................................400 L
Oil .............................................ISO VG 32

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.

3000T - Two Column

This swaging machine is a two column press and with its 30000 KN pressing capacity capable

• Aluminum ferrules (EN 13411-3) size 76 - 92 mm in two bites.
• Flemish Eye sleeves from 1/4" to 4 1/2"
• Swage sockets - Full shank 2"
• Swage sockets - Progressive 2 1/2"

Quality:
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.

Warranty:
12 months defective parts warranty.

Technical Data:
Max pressure capacity ..................30000 KN
Working stroke ..............................180 mm
Max oil pressure .............................370 bar
Unloaded stroke speed ................ 4.9 mm/s
Loaded stroke speed.................... 1.4 mm/s
Return speed .............................. 8.8 mm/s
Swaging die take-up, Max ..... 380 x 300 mm
with Angle Packing ............... 300 x 250 mm
Operating height ..........................1070 mm
Power supply ....................................400 V
                                                        50 Hz
                                                        30KW
Dimensions (LxWxH) 3000 x 1850 x 2960 mm
Weight ........................................25000 KG
Oil capacity ...................................... 500 L
Oil .............................................ISO VG 46

Other voltages on request!
We reserve the right to change technical data!
Conforms to CE standard.
